SpiralTrac is a revolutionary environmental controller for seal and packing chambers, and has established new standards worldwide for exploiting the maximum performance potential of rotating process equipment in the pulp & paper industry.

What does it do?

A SpiralTrac Enhanced Environment increases the sealing element life, while decreasing flush and product leakage at the same time.

What applications?

Typical pulp & paper industry application include rotating process equipment in pulping (digester/washer), bleach plant, papermaking, recovery (evaporators, causticizing, boiler), and effluent areas. Listed below are some industry sample applications where SpiralTrac has been proven. For more detailed stories, find our Pulp & Paper industry successes in the library.

SpiralTrac Application Solution Equipment
Version P Black Liquor packing Goulds (various)
Version P Black Liquor packing Durco MK II Group II
Version P Black Liquor packing Allis Chalmers PWO Frame 4
Version P Black Liquor packing Bingham CFO K
Version F Type S Bleach / Chlorine seal Allis Chalmers
Version P Condensate Return packing Allis Chalmers PWO
Version P Disk Thickener Filtrate packing Goulds 3196 LTX
Version P Equalization Basin packing Johnson Vertical
Version P Green Liquor packing Babcock & Wilcox SRJO
Version P Lime Slurry packing Canada 6DSH
Version F Type S Paper Stock seal Goulds 3420
Version P Paper Stock packing Babcock & Wilcox 6x10PR
Version P Paper Stock packing Fiber Prep 25-4-0100
Version P Paper Stock packing Serlachius DC-250/450
Version P Paper Stock packing Sunds High Shear Mixer
Version P Paper Stock packing Kamyr 10x8
Version P Paper Stock (De-inked) packing Goulds (various)
Version P Paper Stock (Recycled) packing Allis-Chalmers Frame 3 Size 3
Version P Paper Stock (Recycled) packing Beloit (various)
Version F Type S Paper Stock(ClO2) seal Goulds 3175L
Version P Paper Stock(ClO2) packing Allis-Chalmers PWOF9C1
Version P Paper Stock (De-inked) packing Goulds (various)
Version P Pulp packing Kamyr 10x8
Version P Pulp packing Sprout Waldron (26")
Version P Thick Stock packing Warren (various)
Version P Water (dirty) packing Fairbank Morse Split Case
Version N White Water seal Goulds (various)
Version P White Water packing Allis-Chalmers 6x3x14
Version P Wood Chips packing Beloit 3512

Typical Pump Types

  • Ahlstrom
  • Allis-Chalmers
  • Andritz
  • Beloit
  • Bingham
  • Black Clawson
  • Canada
  • Canron
  • Chesterton
  • Durco
  • Goulds
  • Green Lightnin
  • Impco
  • Jones
  • Prochem
  • Sprout Bauer
  • Sprout Waldron
  • Sunds
  • Valmet
  • Warren

Sample Success Stories in the pulp & paper industry List All

st version c with chesterton 180 seal in the pulp & paper industry no flush cover

ST Version C with Chesterton 180 Seal in the Pulp & Paper Industry NO FLUSH

Solution: seal
Application: Black Liquor
Equipment: ABS Scanpump

View
st version p with 1400r graphite packing in the pulp & paper industry cover

ST Version P with 1400R Graphite Packing in the Pulp & Paper Industry

Solution: packing
Application: Pulp
Equipment: Vertical Pulper

View
bronze packing version spiraltrac™ with chesterton 1730™ packing cover

Bronze Packing Version SpiralTrac™ with Chesterton 1730™ Packing

Solution: packing
Application: Pulp
Equipment: Andritz Agitator

View

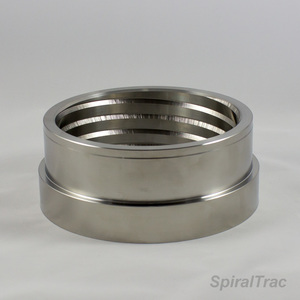

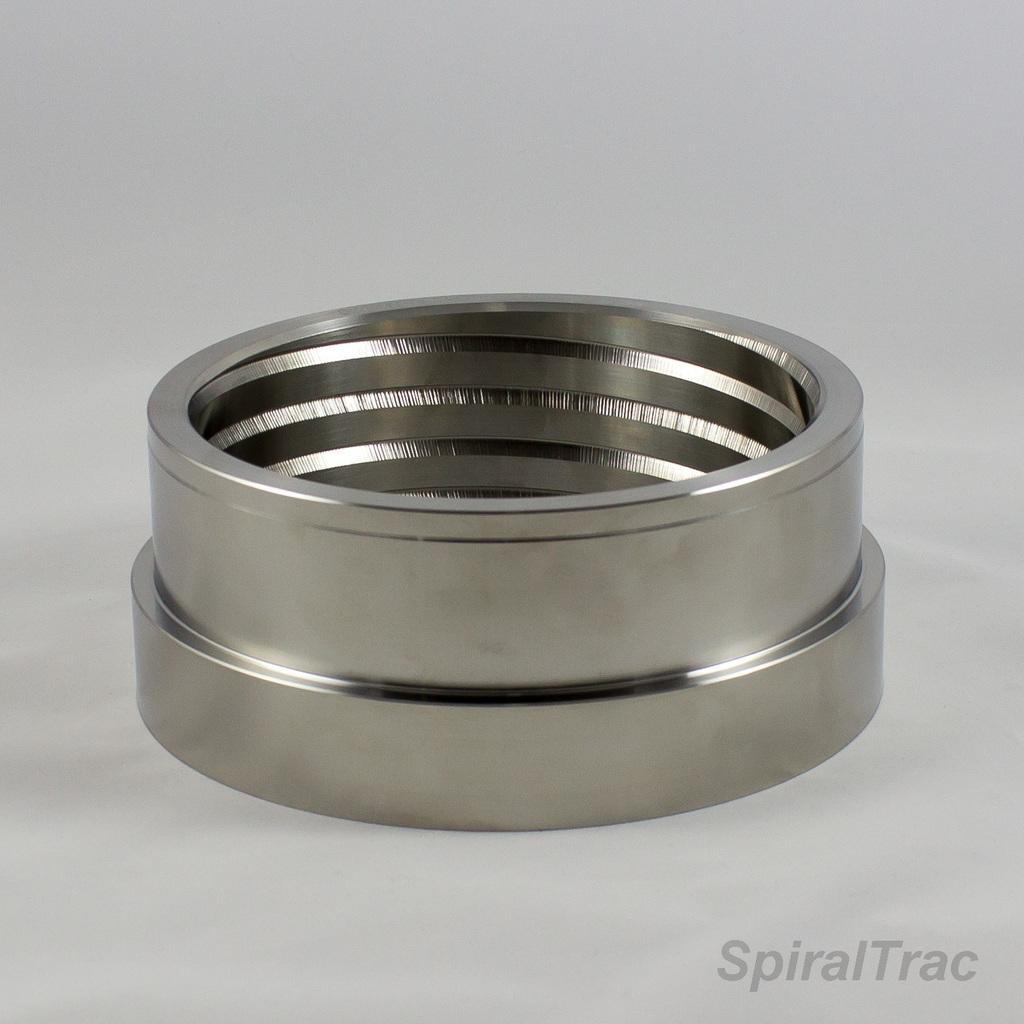

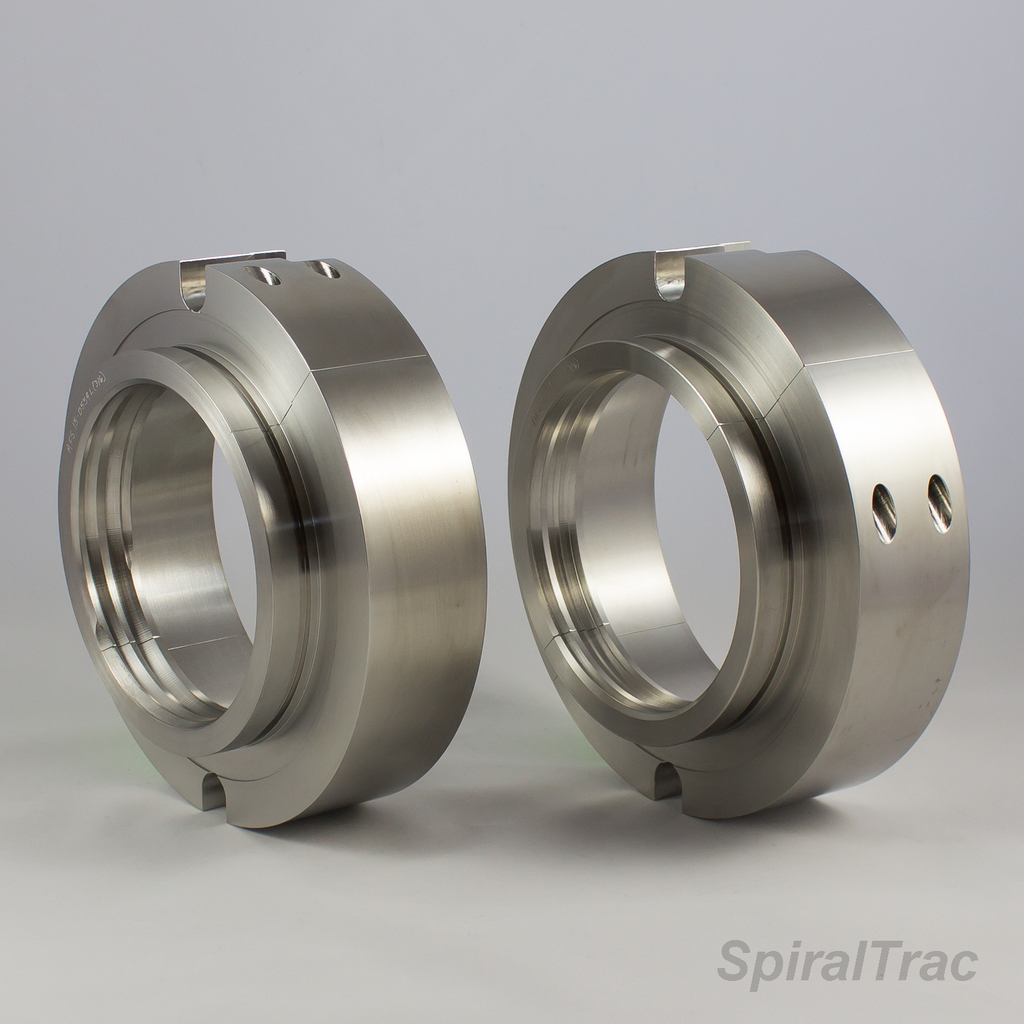

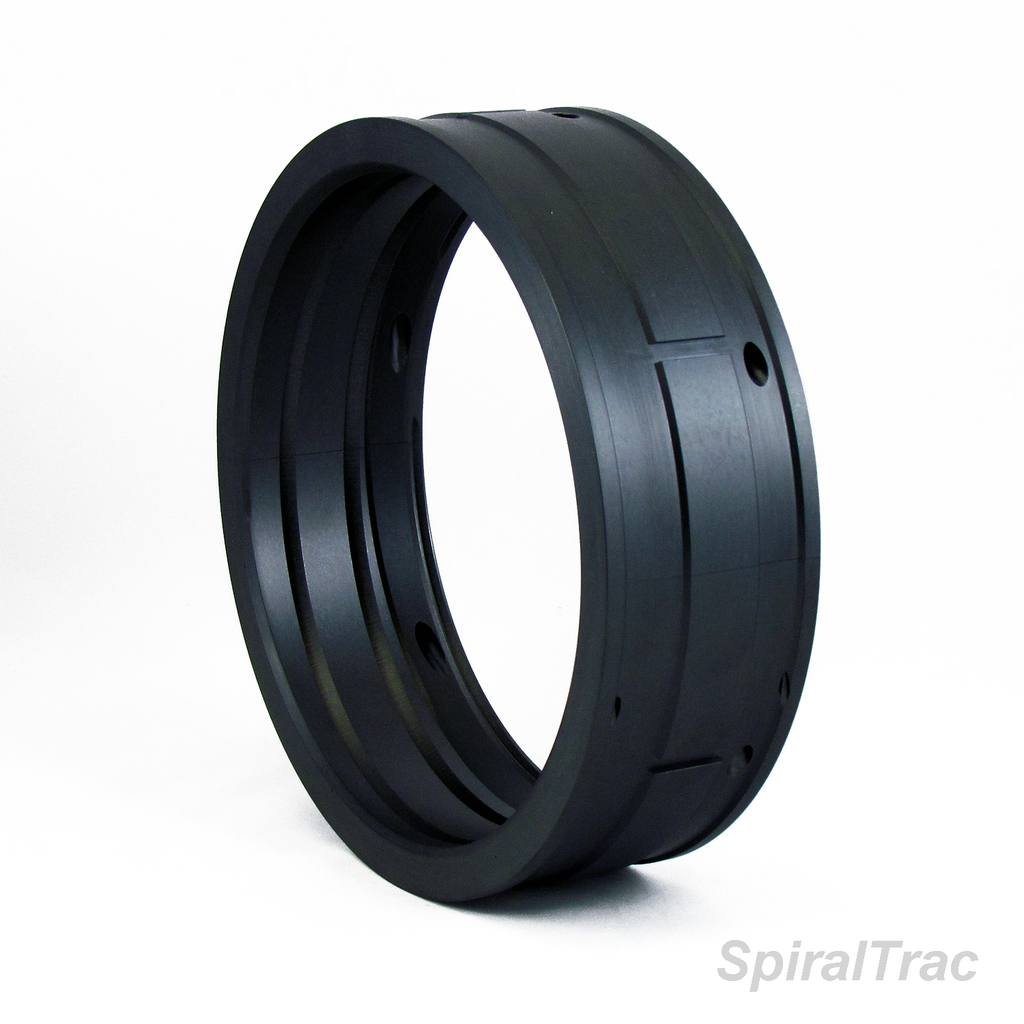

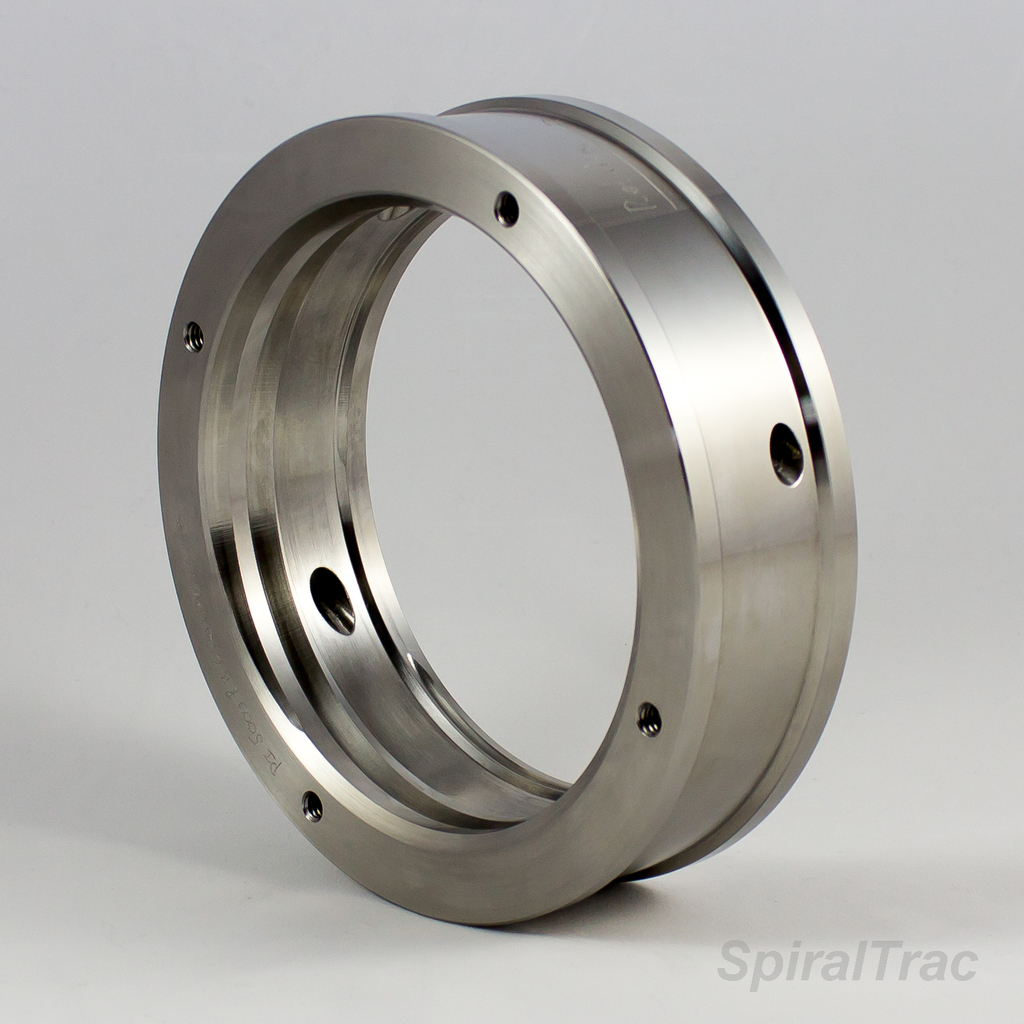

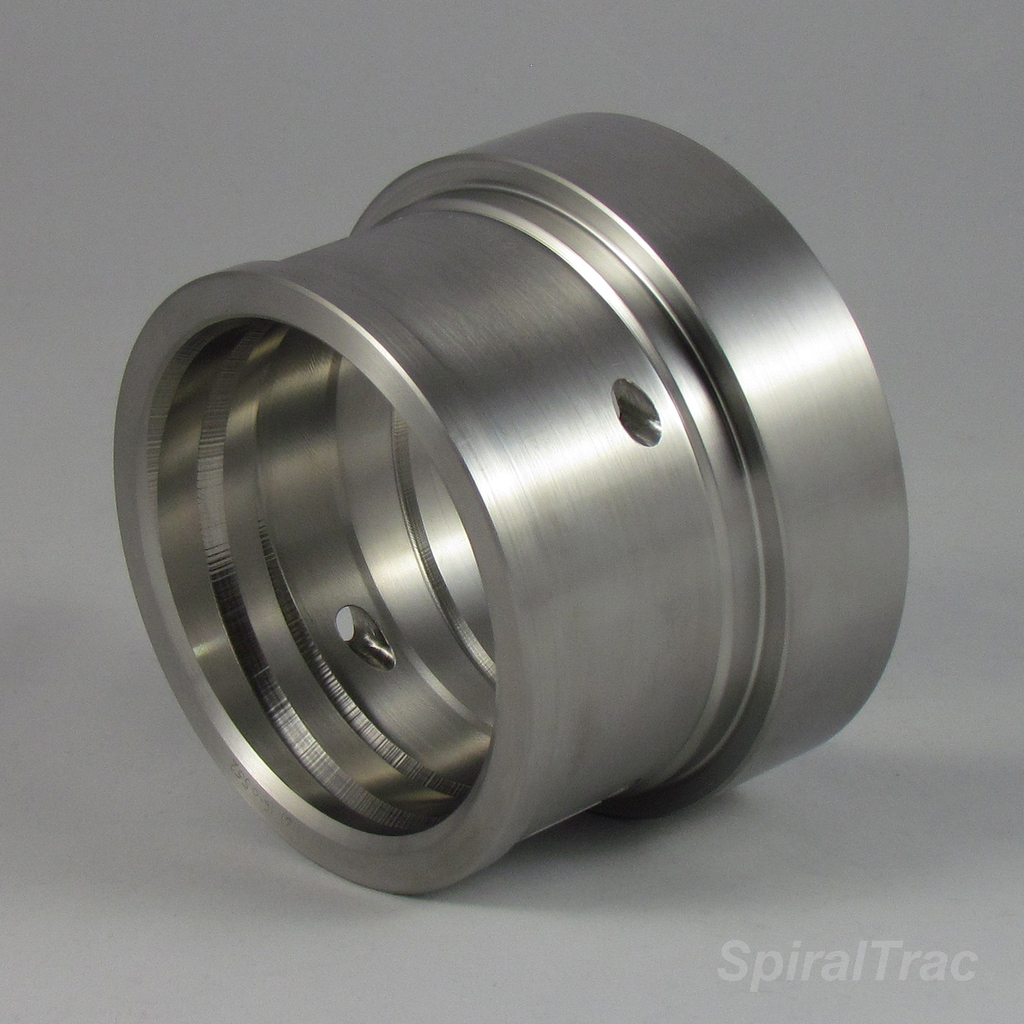

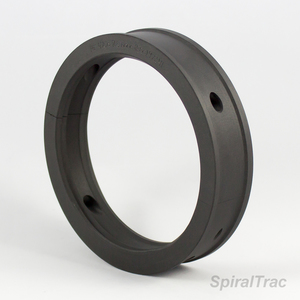

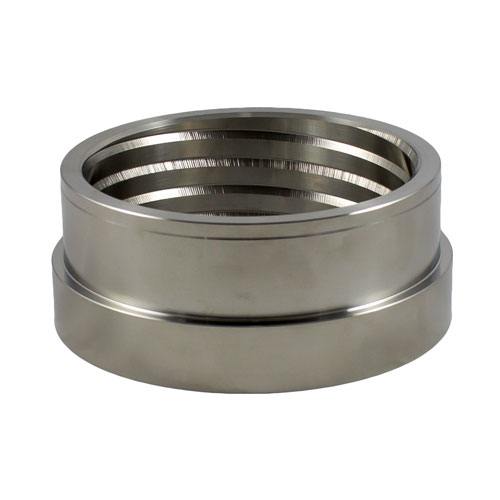

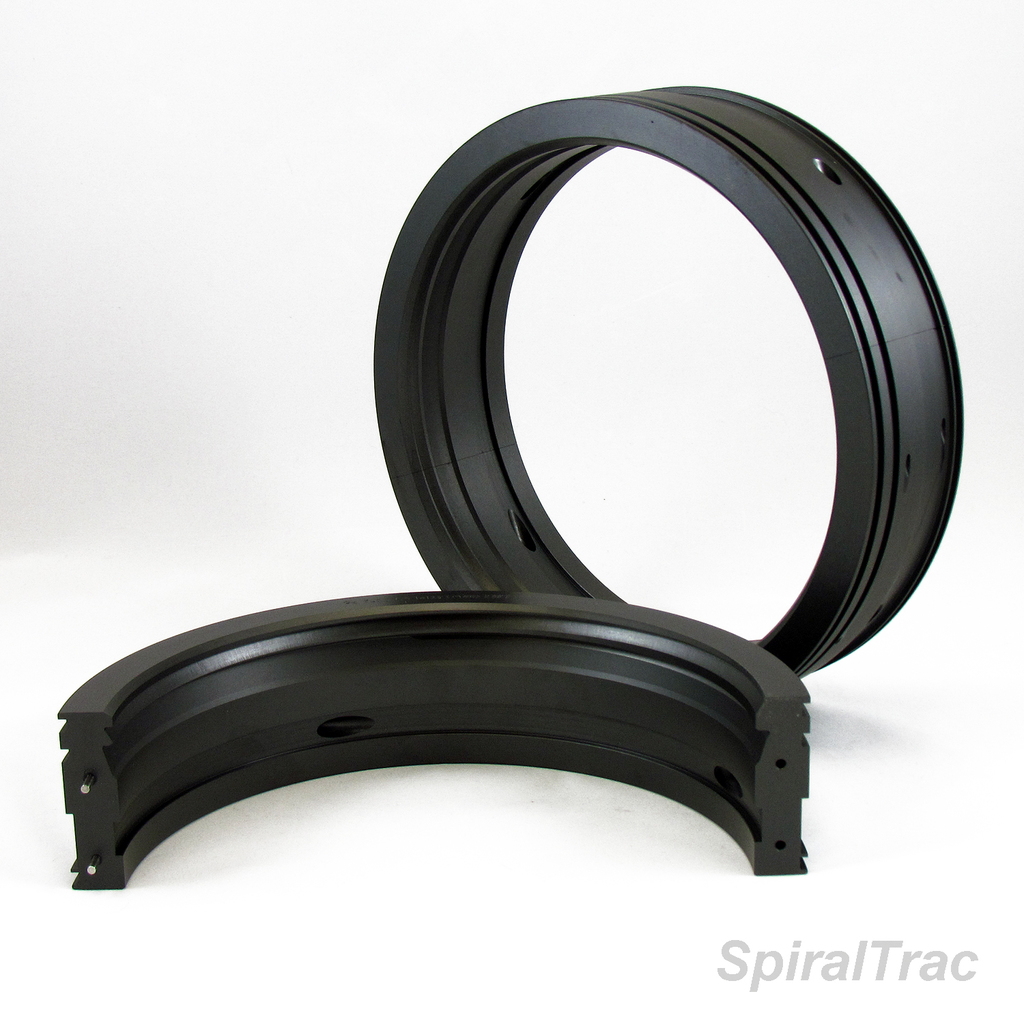

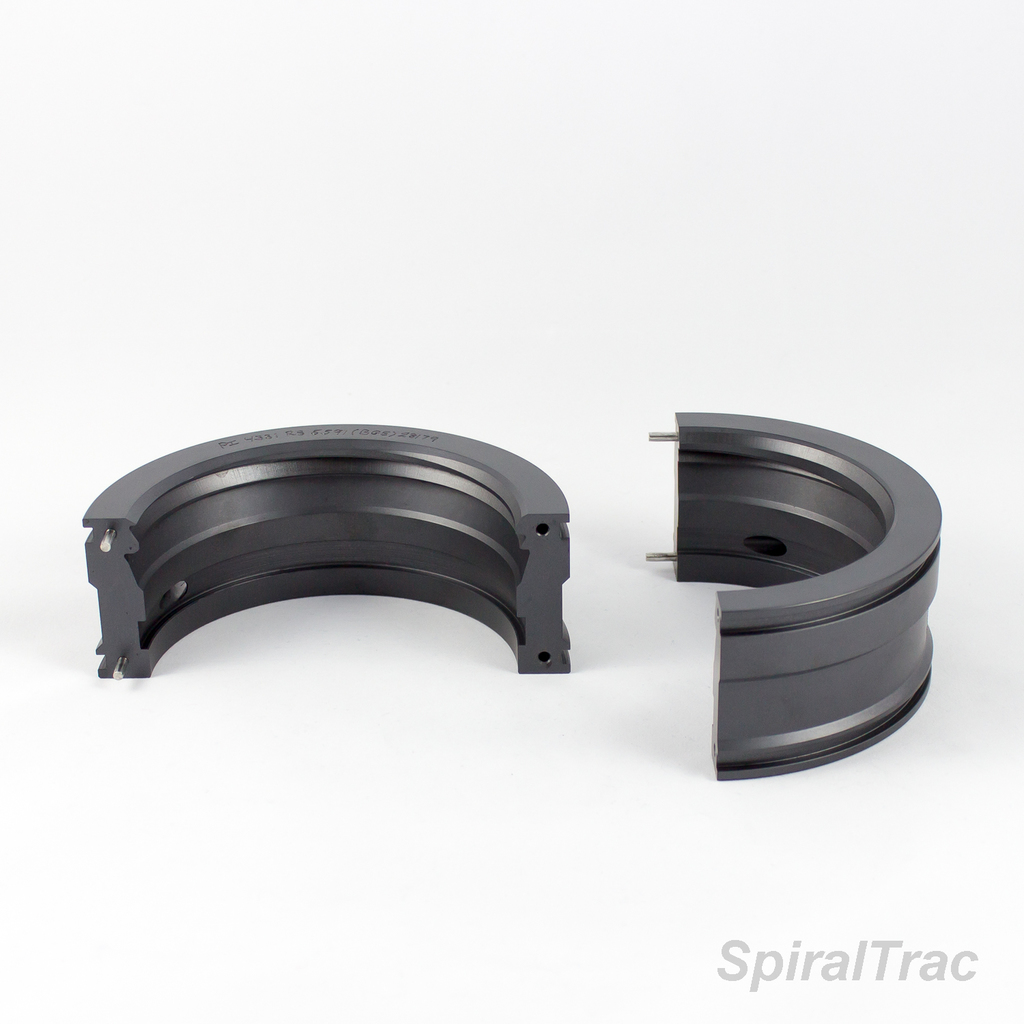

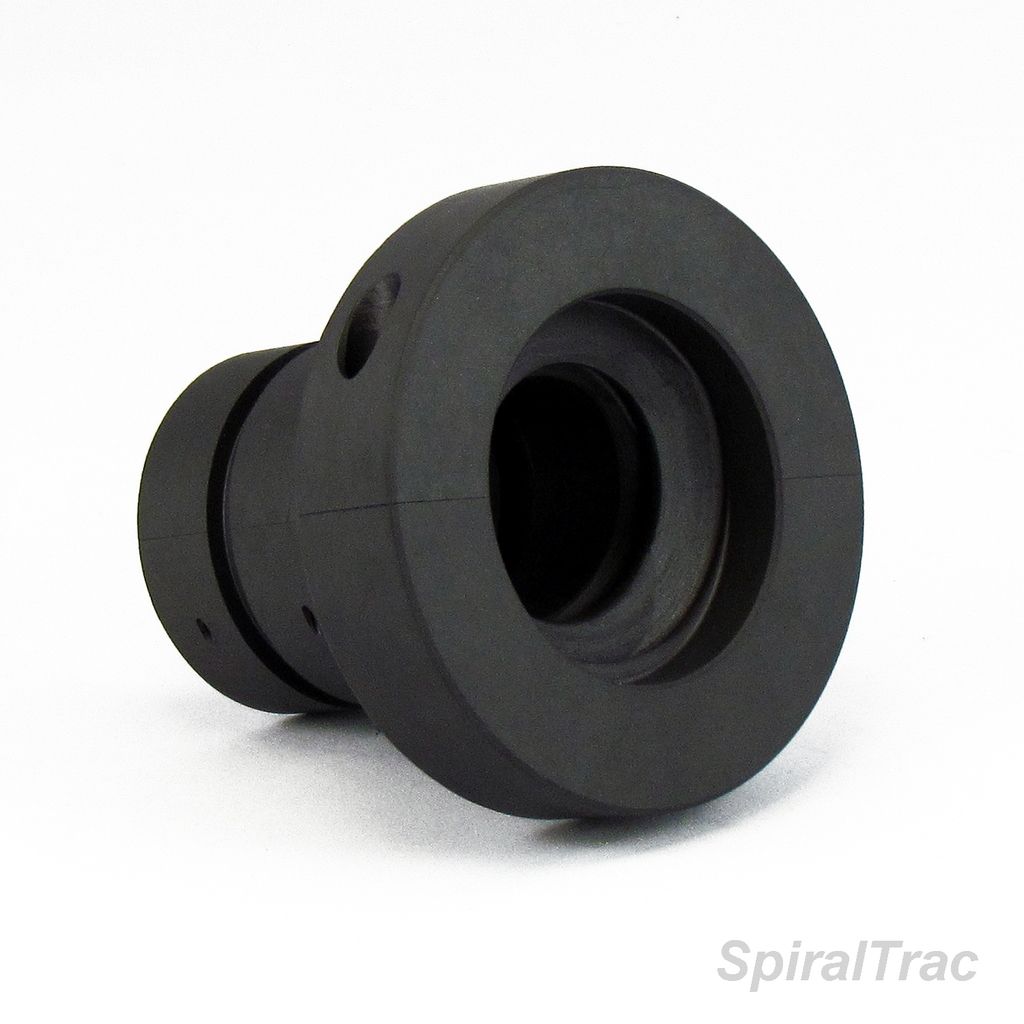

Pulp & Paper Industry Device Gallery

Left Oblique-thumbnail

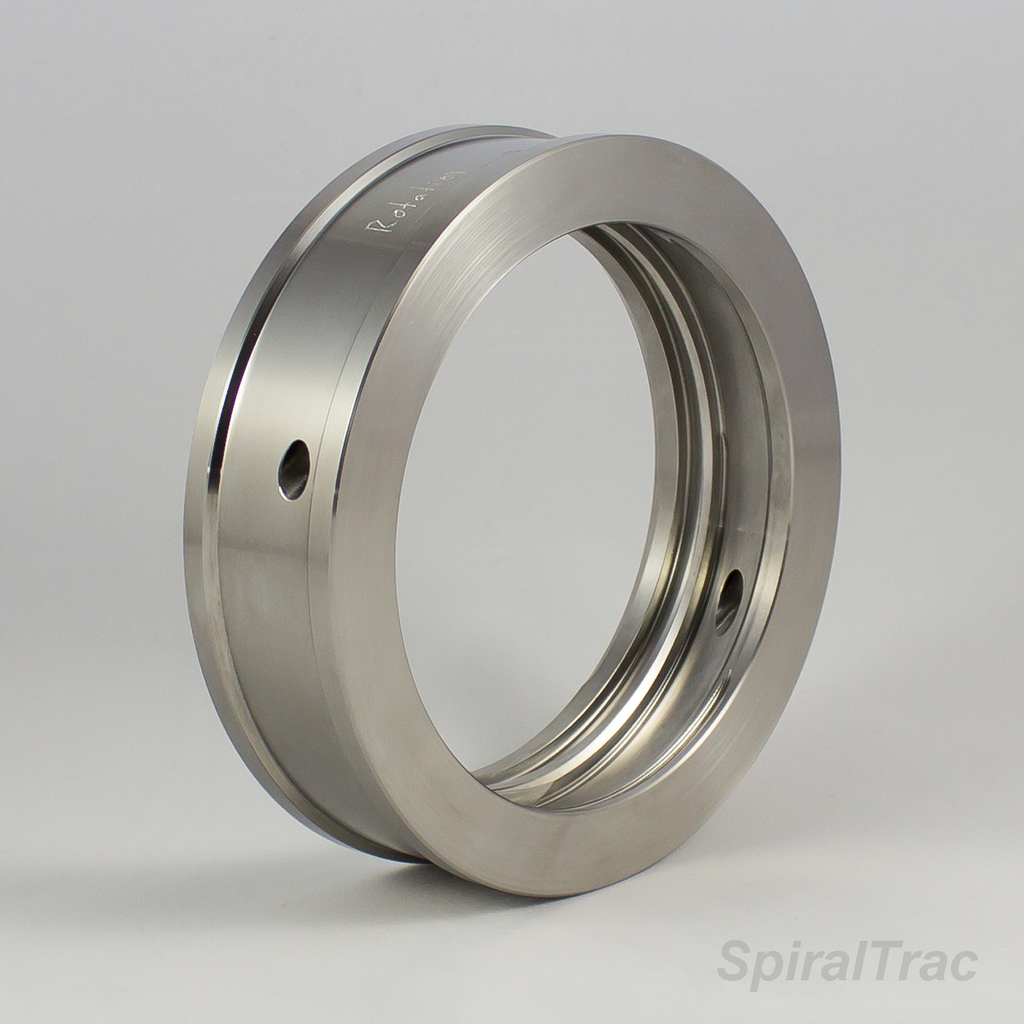

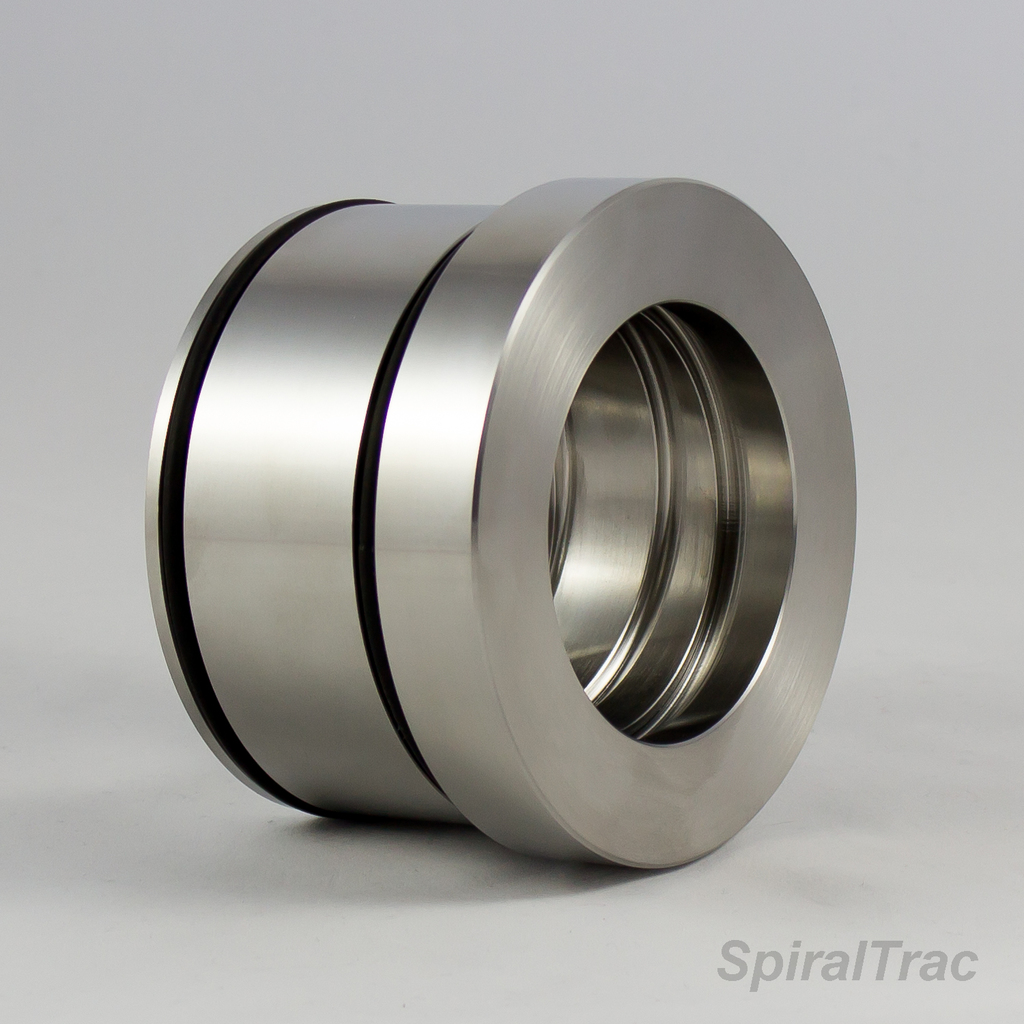

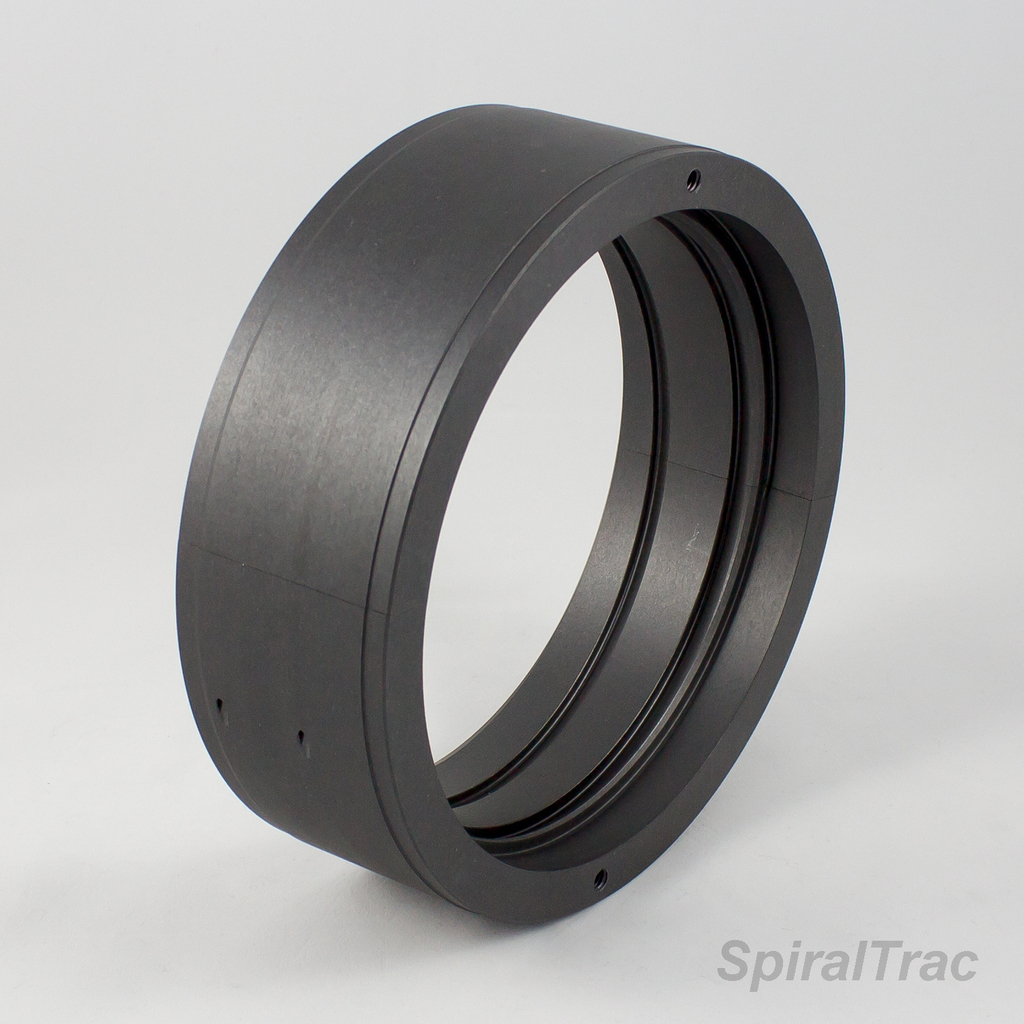

ST Side 2-thumbnail
Right Oblique-thumbnail

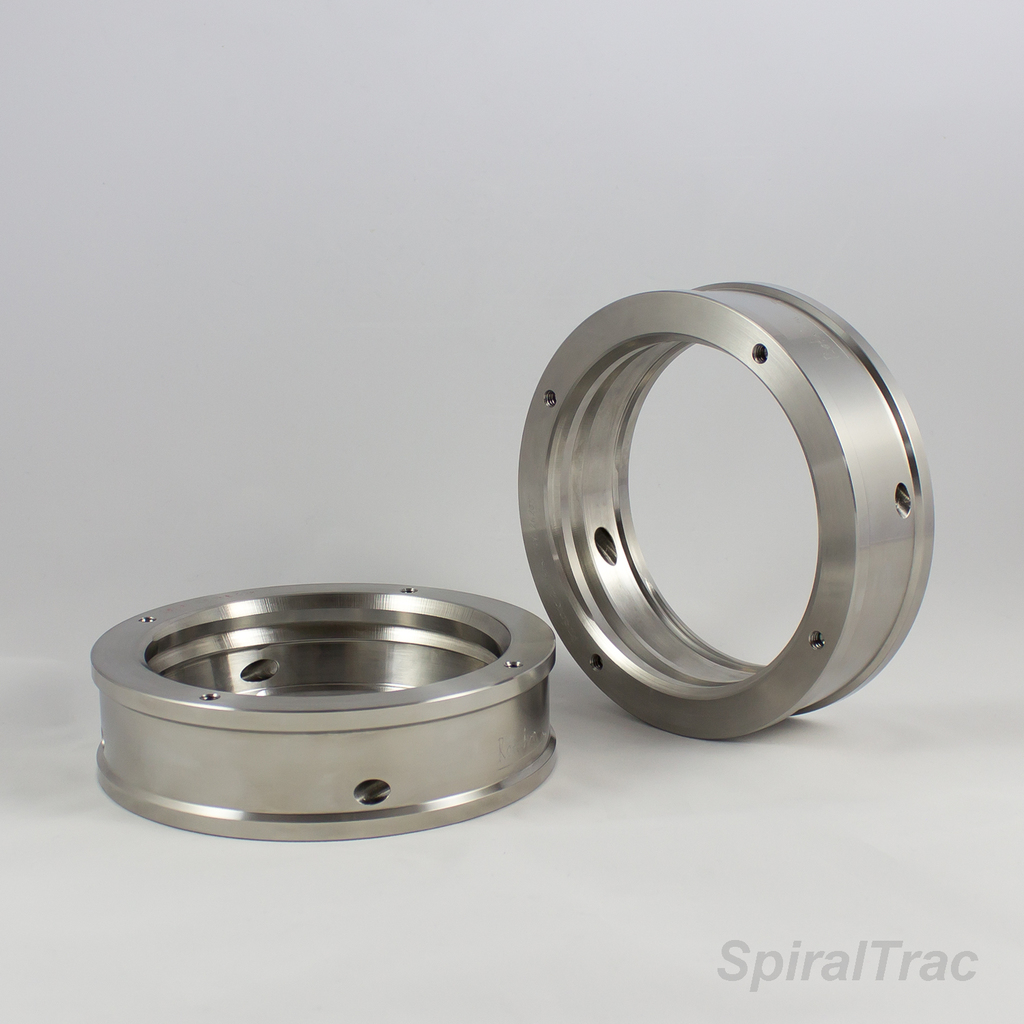

Group 1-thumbnail

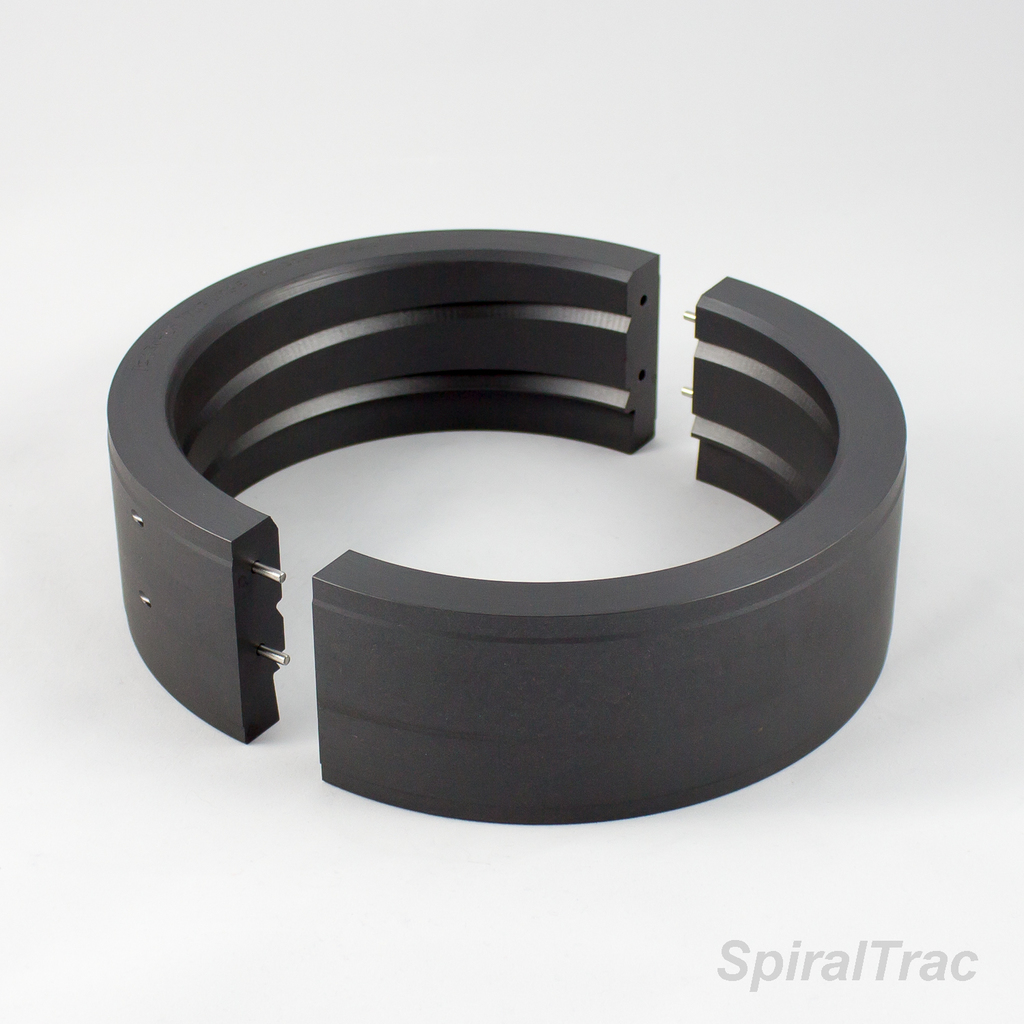

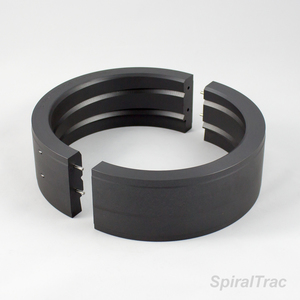

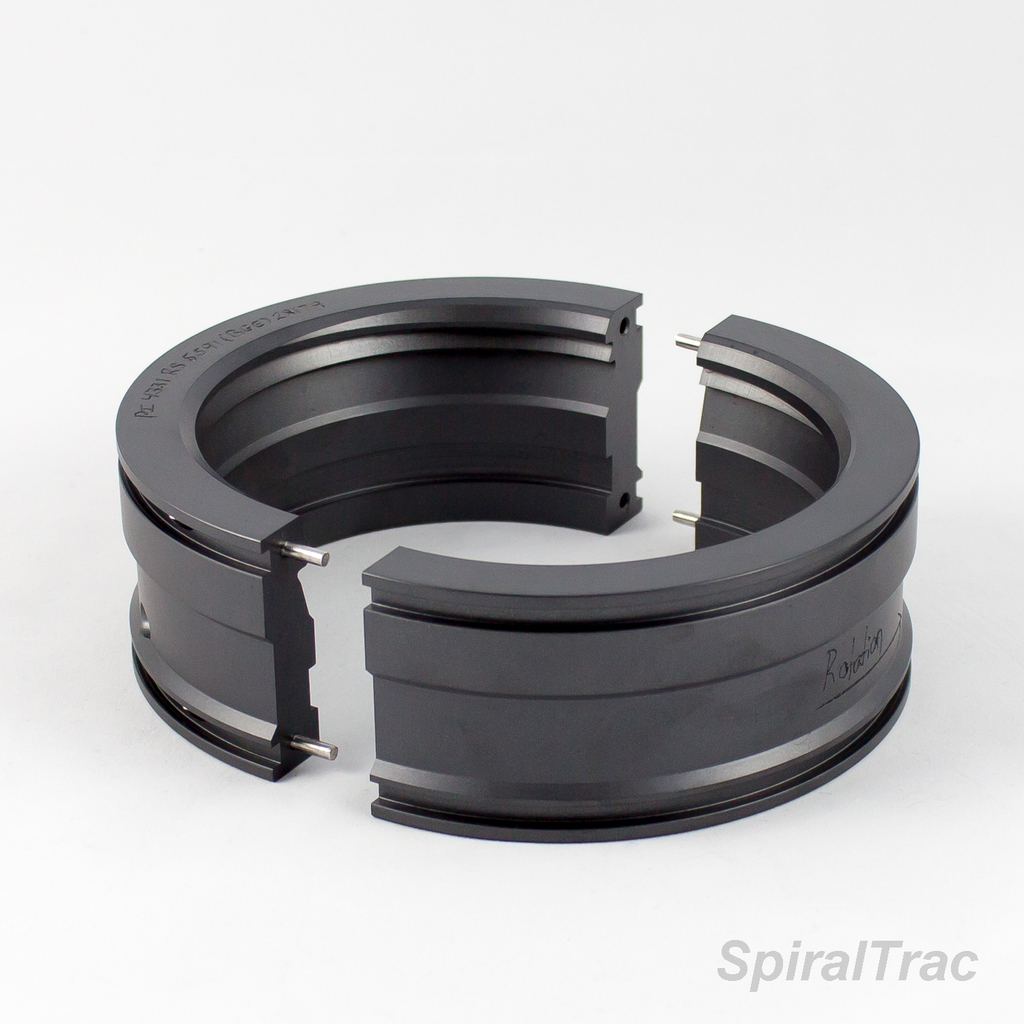

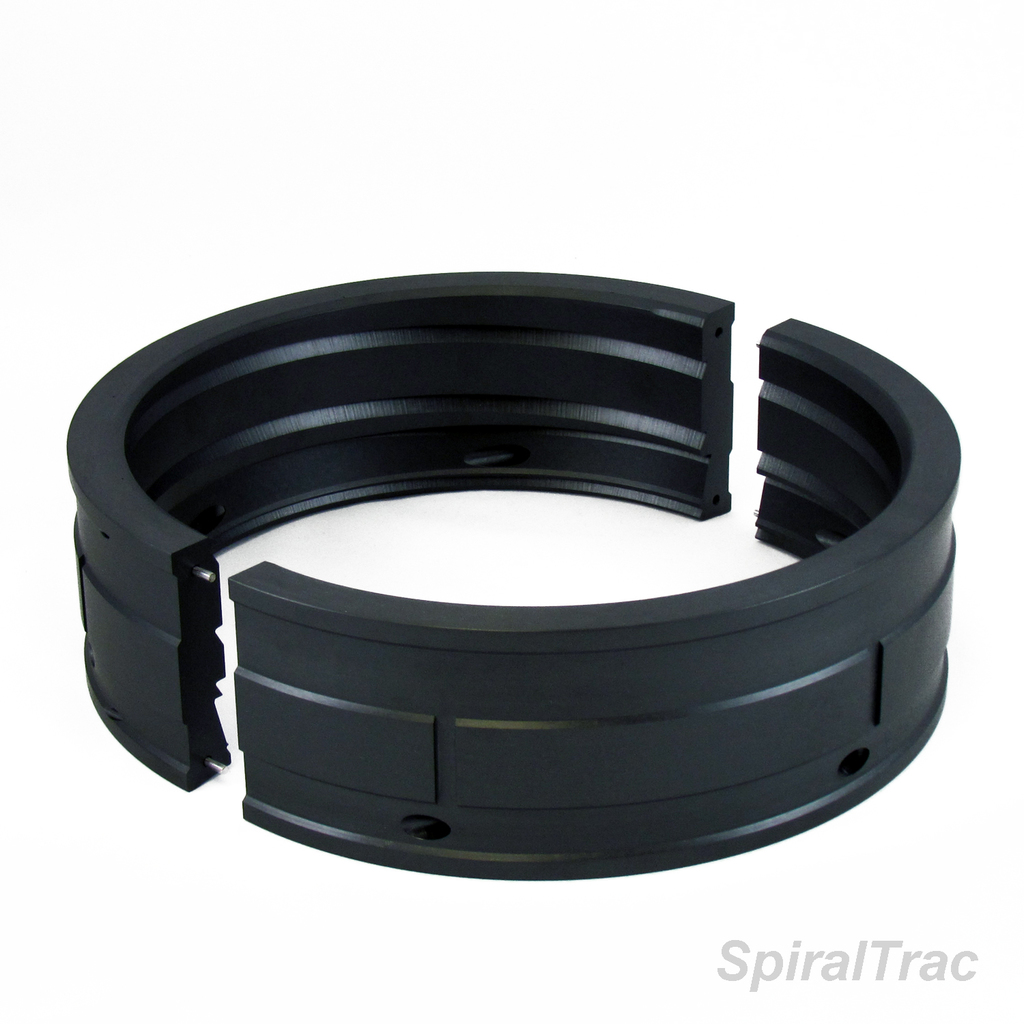

ST split 2-thumbnail
Right Oblique-thumbnail
Group 4-thumbnail
Right Oblique-thumbnail
SpiralTrac Piece 2-thumbnail

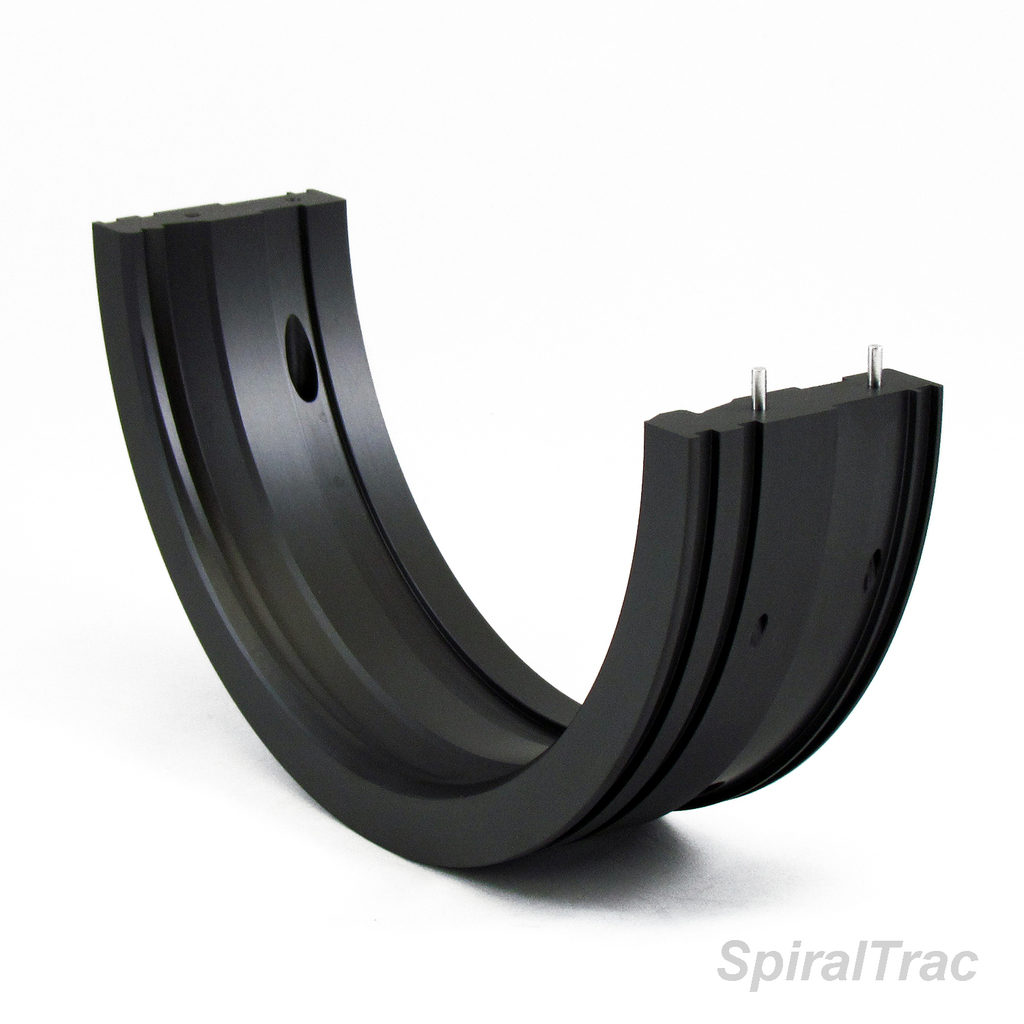

SpiralTrac Piece 1-thumbnail

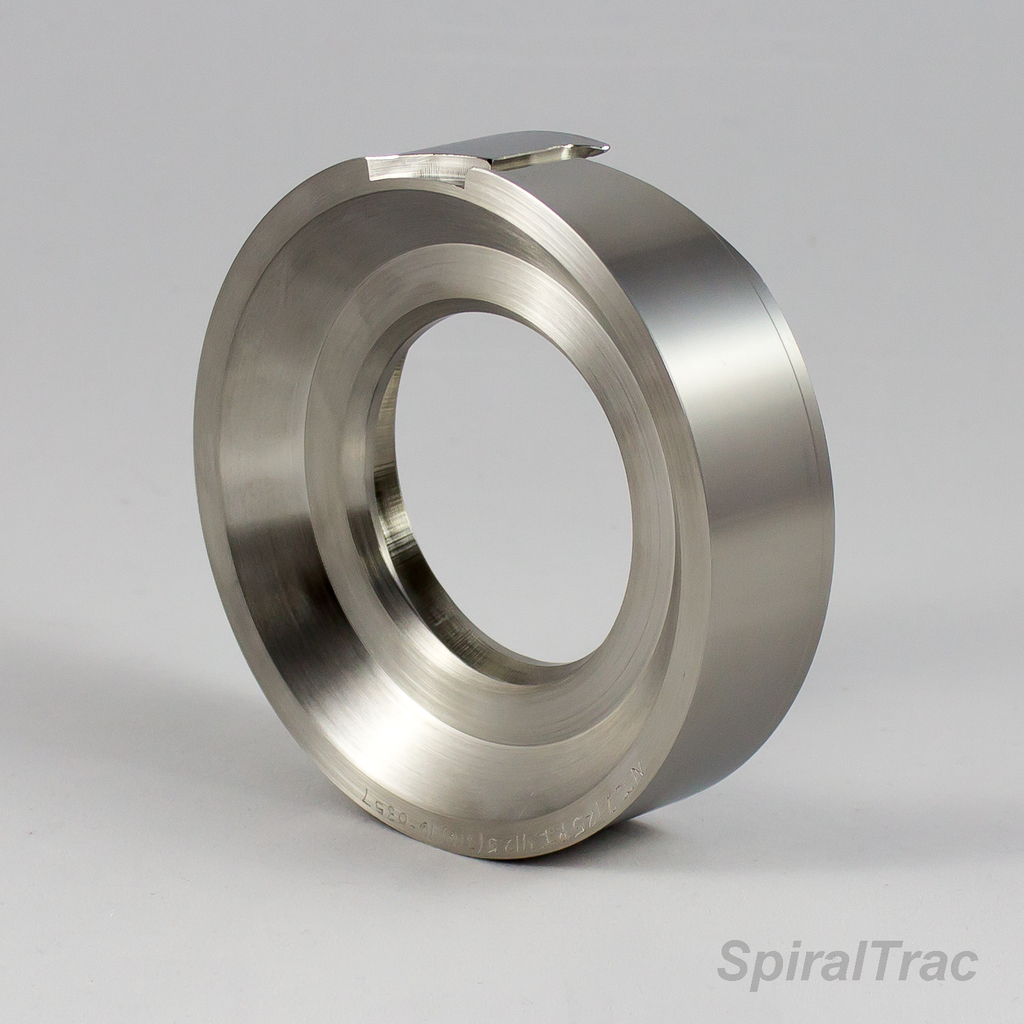

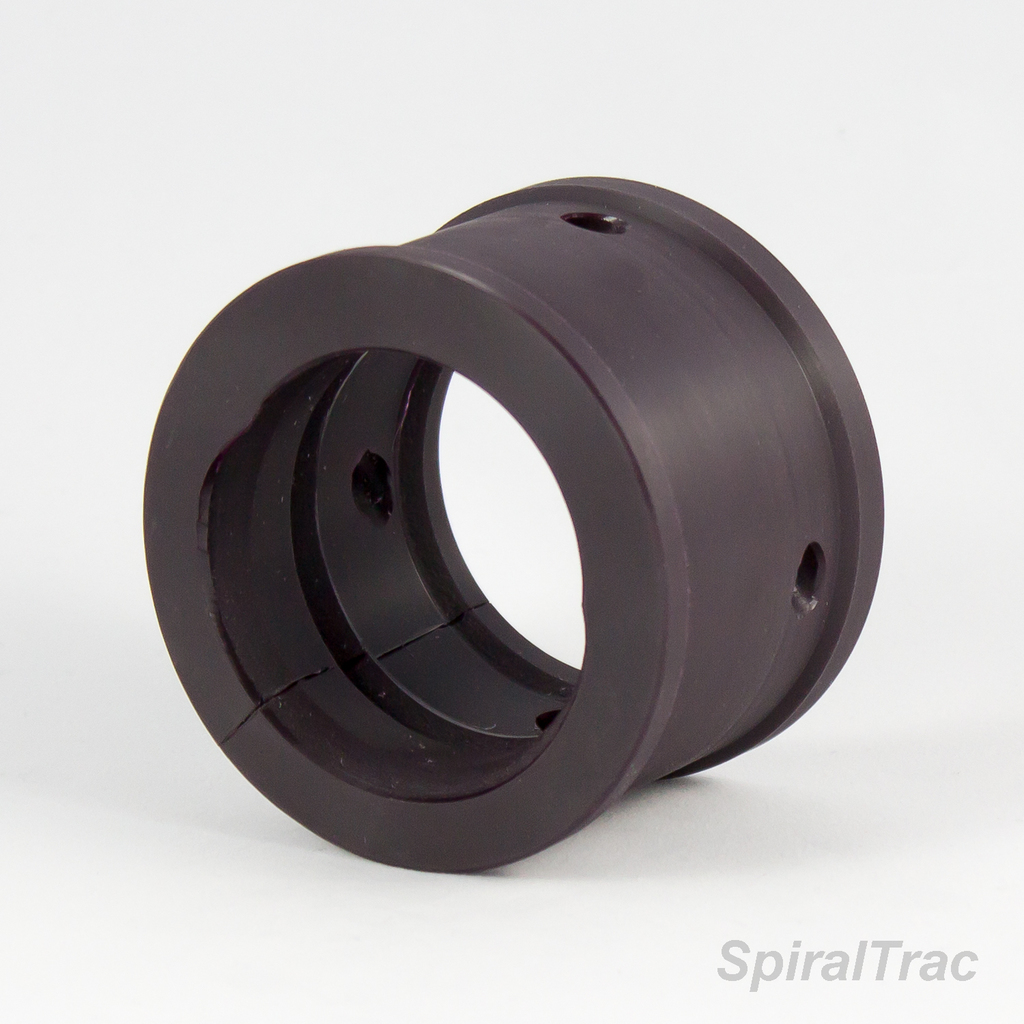

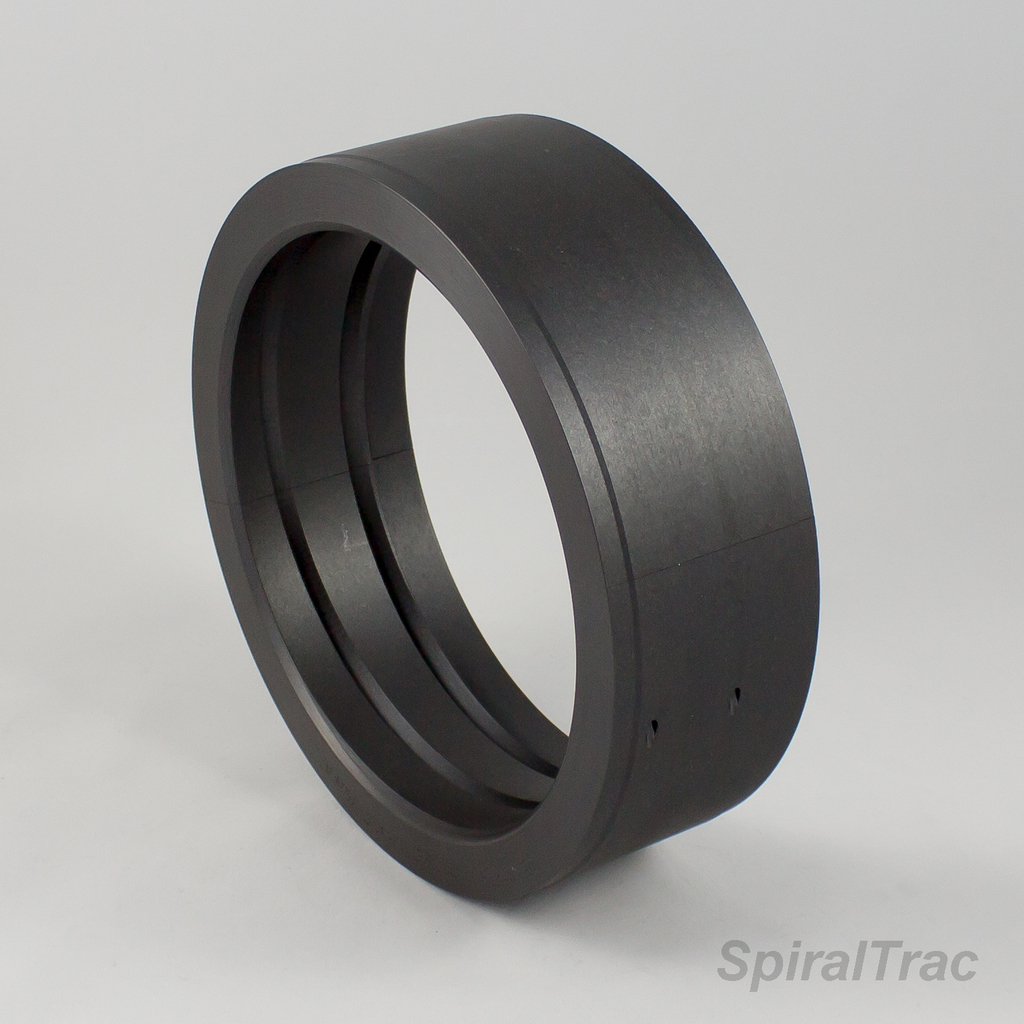

ST Side 1-thumbnail
Left Oblique-thumbnail
