SpiralTrac™ with Shaft Support

Shaft deflection and vibration contribute to premature packing and seal failure

Aside from the normal effects that the fluids have in decreasing packing and seal life, which SpiralTrac can solve, there may also be problems associated with shaft movement or deflection.

EnviroSeal has now added another dimension to it's patented SpiralTrac™ technology.

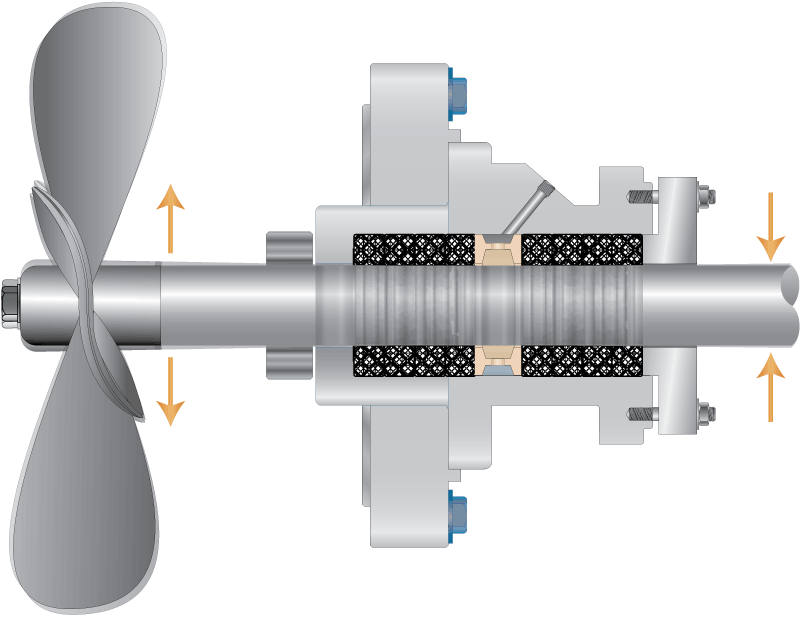

Shaft Vibration

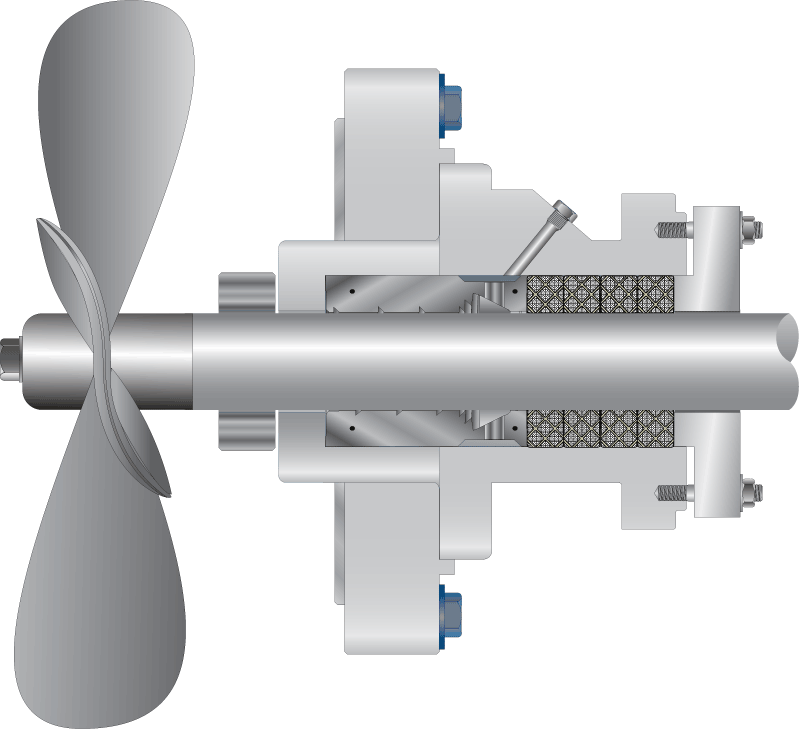

Shaft Support

Tight clearance for added shaft support resulting in extended packing/seal life.

Faster, easier, more effective packing maintenance.

No modifications required to the pump or seal cavity.

Minimizes heat buildup in seal cavity and at the seal faces.

Increase seal MTBF by as much as 2-6 times.

Dramatically reduces direct and indirect costs associated with the operation of rotating process equipment.

Frequently Asked Questions all FAQs

Ask an Expert

What are the material recommendations when intermittent shaft support is needed?

MGE (PPS blend thermoplastic), BGE (PEEK blend thermoplastic) and 660 Bronze.

Ask an Expert

Essential Documents

Material options

Engineered to your Specifications
Manufactured in a variety of material choices
Aimed at your particular needs and process specifications
