SpiralTrac™ for KREBS® millMAX™ Slurry Pumps
- March 03, 2020
- 3.55 Thousand

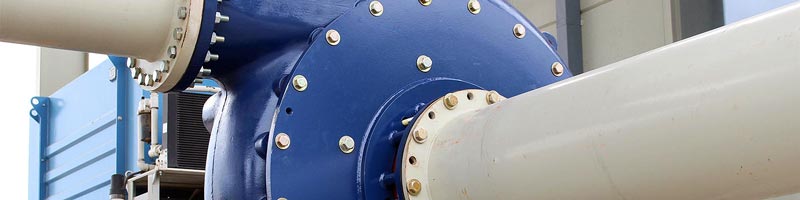

KREBS© millMAX™ Slurry Pumps are globally recognized by the industry for their reliability and efficiency. To further extend the life of your sealing solution in your millMAX™ slurry pump, use a Packing Version SpiralTrac™. We already designed it for you.

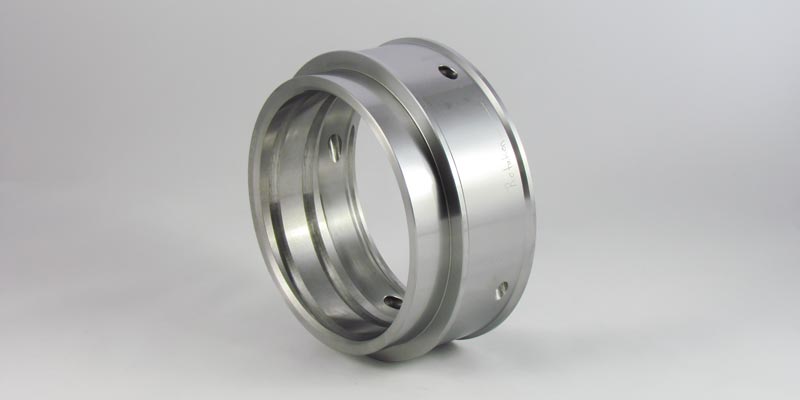

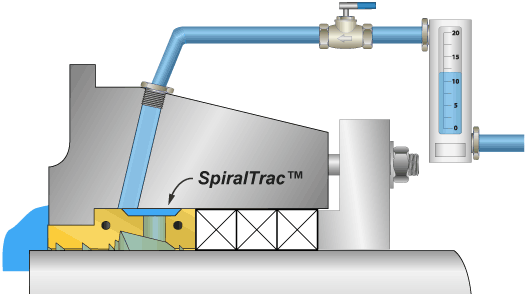

Gain all the benefits of our Packing Version SpiralTrac™, specifically designed to fit in KREBS millMAX™ Series Slurry Pumps. The SpiralTrac Environmental Controller replaces the OEM L-shaped bushing and bottom packing ring if a high flow configuration, or the bottom packing ring and lantern ring in a low flow configuration.
| KREBS Model | Size | SpiralTrac part #* | Packing rings required |
|---|---|---|---|
| MM80 | 3x2-9 | PM06400RS08300(XXX)11-0648 | 3 |
| MM100 | 4x3-12 | PM08600RS11200(XXX)11-0649 | 3 |
| MM100 | 4x3-17 | PM08600RS11200(XXX)11-0649 | 3 |
| MM150 | 6x4-16 | PM11000RS14200(XXX)11-0650 | 3 |
| MM150 | 6x4-21 | PM11000RS14200(XXX)11-0650 | 3 |
| MM200 | 8x6-20 | PM11000RS14200(XXX)11-0650 | 3 |
| MM200 | 8x6-24 | PM11000RS14200(XXX)11-0650 | 3 |
| MM250 | 10x8-24 | PM14000RS17800(XXX)11-0651 | 3 |
| MM300 | 12x10-30 | PM14000RS17800(XXX)11-0651 | 3 |
| MM350 | 14x12-36 | PM17780RS21700(XXX)11-0622 | 3 |
| MM400 | 16x14-39 | PM17780RS21700(XXX)11-0622 | 3 |
| MM500 | 20x18-46 | PM22860RS28000(XXX)11-0656 | 4 |
| MM600 | 24x20-54 | PM27940RS33100(XXX)11-0623 | 4 |
| MM700 | 28x26-64 | PM27940RS33100(XXX)11-0623 | 4 |
| UM900 | - | PM36830RS42000(XXX)12-0107 | 5 |
*please replace "XXX" with Material ID for complete part # when ordering.
For Material ID and material recommendation visit the Material Options page.
Notes
- All SpiralTracs designed for KREBS millMAX series pumps are designed to use the flush port closest to the impeller end, and have extra clearance on the ID.
- SpiralTrac is axially split for ease of installation without pump disassembly. If solid device is required, please contact EnviroSeal.
- Find existing KREBS millMAX successes in our literature page.
- For the ultimate sealing solution, order as a Chesterton SuperSet with high quality Chesterton packing.
For ordering, please contact your local A.W. Chesterton representative or reach out to us.
Download SpiralTrac for KREBS Bulletin PDF
KREBS millMAX is a trademark of FLSmidth Group.
